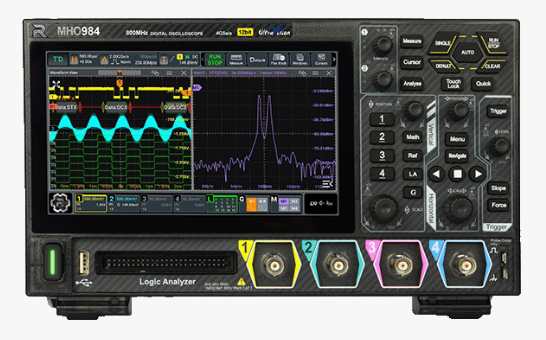

Rigol MHO984 800MHz,4GSa/s,12bit,Mixed Signal Oscilloscope

Detailní popis Rigol MHO984 800MHz,4GSa/s,12bit,Mixed Signal Oscilloscope

The MHO900 Series high-resolution digital oscilloscopes are the latest members of RIGOL’s Ultra-Portable family, featuring up to 1 GHz analog bandwidth (MHO98 only), 4 GSa/s real-time sampling, and 500 Mpts memory depth. Beyond its powerful specifications, the MHO900 Series integrates a wealth of functions into a compact, portable design—delivering engineers an exceptional testing experience.

Powerful Performance, Redefining the Entry-Level Standard

The MHO900 Series, with its unmatched performance in its class, completely reshapes the boundaries of entry-level oscilloscopes. It offers up to 800 MHz analog bandwidth to handle high-speed signal challenges with ease, and its standard 4 analog channels provide flexible support for complex system debugging. At its core is a 12-bit high-resolution ADC, delivering 16 times the detail of traditional 8-bit instruments—making even the faintest anomalies visible. Combined with an ultra-long 500 Mpts memory depth, it ensures long-duration capture and analysis of complex signals without missing a detail. With the MHO900, you can confidently tackle future testing challenges and achieve a true leap from “entry” to “mastery.”

All-in-One Power, An Integrated Efficiency Tool

The MHO900 is far more than an oscilloscope—it is a powerful all-in-one time-domain workstation. With 16 digital channels standard, it allows perfect synchronization and analysis of analog and digital signals, giving you complete insight into mixed-signal systems. Additionally, you can opt for the built-in dual-channel signal generator, capable of outputting pure sine waves up to 100 MHz, seamlessly integrated with the powerful Bode Plot analysis function. This combination makes it an ideal solution for complex analysis and testing challenges such as power supply loop stability. By bringing multiple instrument functions together in one compact device, the MHO900 significantly boosts your efficiency.

Wireless Connectivity, Instant Access

The MHO900, equipped with standard Bluetooth and Wi-Fi adapters, allows engineers full remote network access and control, enabling unattended automated testing or long-distance data monitoring—greatly improving efficiency and safety. Bluetooth connectivity expands the possibilities for peripheral devices without occupying any physical ports, eliminating cumbersome cables. This “out-of-the-box” wireless solution is designed to create a cleaner, modern testing environment, allowing you to focus more on data analysis and technological innovation.

Nahoru

Zobrazit videa a soubory ke stažení »

Videa a soubory ke stažení Rigol MHO984 800MHz,4GSa/s,12bit,Mixed Signal Oscilloscope

Rigol MHO900 Digital Oscilloscopes Data Sheet

Typ: pdf
