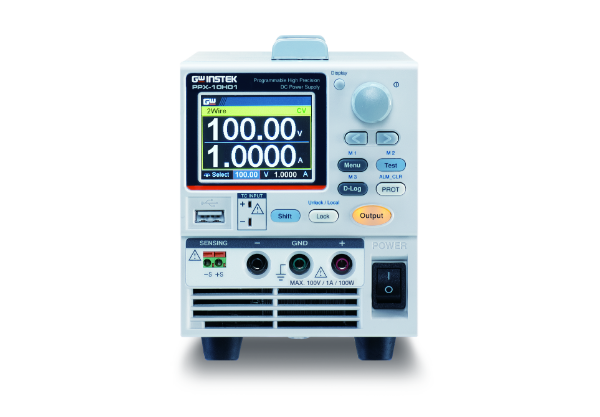

GW Instek PPX-10H01(EU) Programmable High Precision Power Supply 100V, 1A, 100W
- CV, CC priority start function.
- Four levels of current measurement resolution (min. 0.1μA) / two levels of voltage measurement resolution (min. 0.1mV)
- Power output ON/OFF delay function
- Adjustable voltage and current slew rate
- Bleeder circuit control
- Delayed over-current protection(OCP Delay)
- Sequential power output function
- Remote Sensing function
- Data Logger
- 10 sets of memory function
- Over voltage protection, under voltage limit, over current protection, over temperature protection, AC alarm function
- Supports K Type thermocouple temperature measurement
- Interfaces: USB, LAN, RS-232, RS-485, Analog Control
- Size: 3U high, in line with 1/4 Rack Detailní informace
| Cena bez DPH | 27 248,00 Kč |
| Cena s DPH | 32 970,08 Kč |
| Dostupnost | Na dotaz |
| Kód produktu | GW_PPX-10H01(EU) |
Záruka 24 měsíců
Detailní popis GW Instek PPX-10H01(EU) Programmable High Precision Power Supply 100V, 1A, 100W
The PPX series programmable high-precision DC power supplies include six models; PPX- 1005(10V/5A/50W), PPX-2002(20V/2A/40W), PPX-2005(20V/5A/100W) ), PPX- 3601(36V/1A/36W), PPX-3603(36V/3A/108W), and PPX-10H01(100V/1A/100W). This series has the output low noise (0.35mVrms) and fast transient response characteristics (<50μs) of conventional linear power supplies.
It also provides constant voltage and constant current priority output modes, and the series can also set the voltage and current rising/falling slew rates separately, and the delay time for the output to be turned on and off.
The PPX series has four current levels and two voltage levels to provide users with high-precision measurements, and via the Data Logger function, the measurement records can be stored in the USB for long-term measurement and recording of IoT devices, portable devices, wearable devices, and sensor components.
