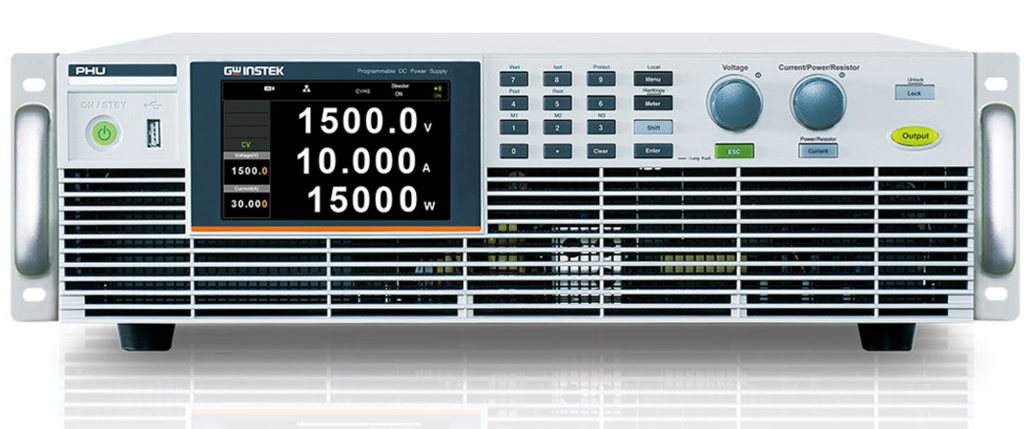

GW Instek PHU 1000-45D 1000 V, 45 A, 15,000 W Programmable DC Power Supply
- C.C/ C.V priority mode
- Adjustable voltage/current rise and fall time
- AWS (Advanced Web Control)
- APC (Adaptive Parallel Connection)
- Parallel connection (maximum 10 units)
- High efficiency and high-power density
- Bleeder Control function
- Internal Resistance function
- Three sets of Preset Function
- Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Standard: USB, LAN, Isolated Analog control
- Option: RS-232&485 or GPIB or CAN Bus or Device Net or Any Bus
- 3U height and 19” Rack Mount Size
More detailed specifications and dimensions of available models are specified in data sheet. Detailní informace
| Cena bez DPH | 277 342,00 Kč |
| Cena s DPH | 335 583,82 Kč |
| Dostupnost | Na dotaz |
| Kód produktu | GW_PHU 1000-45D |
Záruka 24 měsíců
Detailní popis GW Instek PHU 1000-45D 1000 V, 45 A, 15,000 W Programmable DC Power Supply
Prestige / Harmony / Universal
The PHU Series is a single-channel programmable DC power supply with a multi-range output feature which offers a wide range of voltage and current combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height.
PHU's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc. The launch of PHU multi-range high power DC source enhances the completeness of the DC power supply product line of GW Instek, and provides customers with more comprehensive and integrated solutions.
The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity.
The unique APC (Adaptive Parallel Connection) feature offers adaptability in parallel connection, allowing users to make the best choice according to their needs. For instance, users can opt for a 15 kW model and a 10 kW model to combine both to reach a 25 kW capacity within their budget constraints. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control.
For industry interface, PHU provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer’s requirements.
There are a total of 18 models, consisting of 3 power capacities (5 kW/10 kW/15 kW) and 6 voltages (80 V/200 V/500 V/750 V/1000 V/1500 V) to meet all customer needs.
