GW Instek GW_ASR-2050-UN Programmable AC/DC Power Source, 500VA, Universal socket


  • Output Rating: AC 0 – 350 Vrms, DC 0 - ± 500 V
  •
  • Output Frequency up to 999.9 Hz
  •
  • DC Output (100% of Rated Power)
  •
  • Measurements: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
  •
  • Voltage and Current Harmonic Analysis (THDv, THDi)
  •
  • Remote Sensing Capability
  •
  • OVP, OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm
  •
  • Support Arbitrary Waveform Function
  • Output Capacity: 500 VA
  • Sequence and Simulation Function (up to 10 sets)
  • Interface: USB, LAN standard; RS-232+GPIB optionaly (OPT 01)
  • Built-in External Control I/O and External Signal Input
  • Built-in Output Relay Control
  • Memory Function (up to 10 sets)
  • Built-in Web Server
  • Detailní informace

Cena s DPH na dotaz
Dostupnost Na dotaz
Kód produktu GW_ASR-2050-UN

Produkt již bohužel není dostupný

Detailní popis GW Instek GW_ASR-2050-UN Programmable AC/DC Power Source, 500VA, Universal socket

The ASR-2000 series, an AC+DC power source aiming for system integration or desktop applications, provides both rated power output for AC output and rated power output for DC output. Nine ASR-2000 output modes are available, including 1) AC power output mode (AC-INT Mode), 2) DC power output mode (DC-INT Mode), 3) AC/DC power output mode (AC+DC-INT Mode), 4) External AC signal source mode (AC-EXT Mode), 5) External AC/DC signal source mode (AC+DC-EXT Mode), 6) External AC signal superposition mode (AC-ADD Mode), 7) External AC/DC signal superposition mode (AC+DC-ADD Mode), 8) External AC signal synchronization mode (ACSYNC Mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC Mode).

The ASR-2000 series provides users with waveform output capabilities to meet the test requirements of different electronic component development, automotive electrical devices and home appliance, including 1) Sequence mode generates waveform fallings, surges, sags, changes and other abnormal power line conditions; 2) Arbitrary waveform function allows users to store/upload user-defined waveforms; and 3) Simulate mode simulates power outage, voltage rise, voltage fall, and frequency variations. When the ASR-2000 series power source outputs, it can also measure Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic and Current Harmonic. In addition, the Remote sense function ensures accurate voltage output. The Customized Phase Angle for Output On/Off function can set the starting angle and ending angle of the voltage output according to the test requirements. V-Limit, Ipeak-Limit, F-Limit, OVP, OCP, OPP function settings can protect the DUT during the measurement process. In addition to OTP, OCP, and OPP protection, the ASR-2000 series also incorporates the Fan fail alarm function and AC fail alarm function.

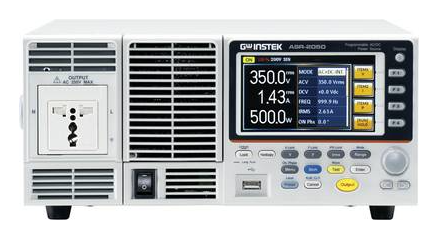

The front panel of the ASR-2050/2100 provides a universal socket or a European socket, which allows users to plug and use so as to save wiring time. The ASR-2050R/2100R is 3U height and 1/2 Rack width design, which is compatible with ATS assembly. The ASR-2000 series supports I/O interface and is equipped with USB, LAN, External I/O and optional RS-232C and GPIB.
